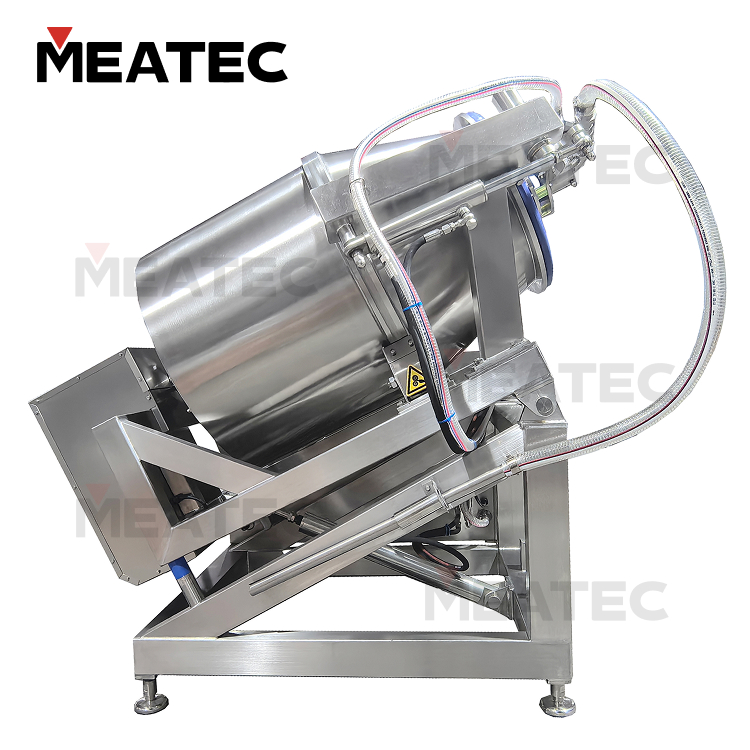

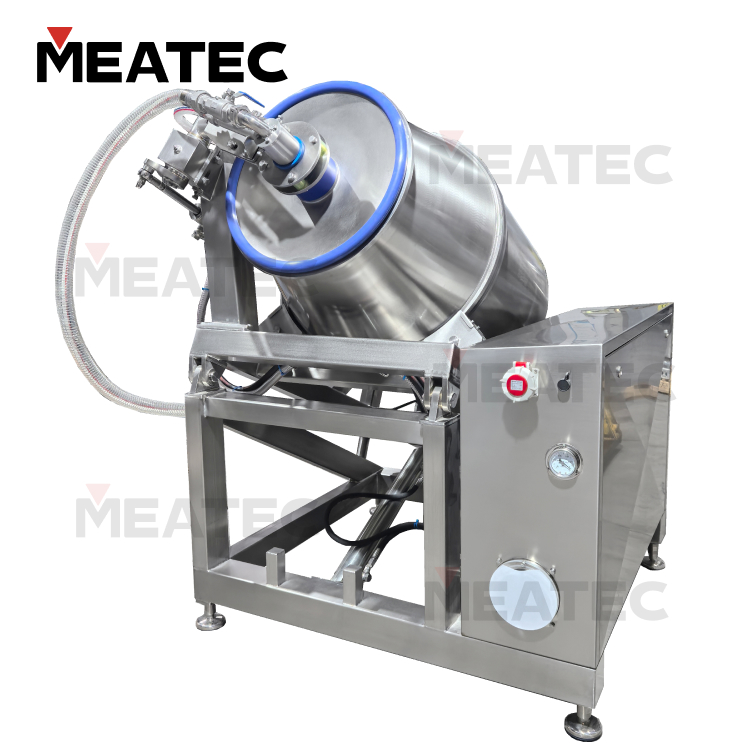

VTY350 tilting vacuum tumbler is a powerful machine for versatile applications, suitable for central kitchens and small-scale factories that look to build a full processing workflow. With its tilting design, it fits up to 200KG capacity, compatible with a standard European style buggy, and it also works with our standard TSY1250 buggy dumber.
Tilting drum allows quick batch offloading between short processing cycles. It is applicable for marinating, seasoning, and mixing sliced meat, meat chunks, fish fillets, and poultry products.
Vacuum meat tumblers make food products more tender, moist and tasty, while improving their appearance and quality consistency.
The drum is lifted and lowered hydraulically, with a loading volume of up to 60%, enabling rapid unloading.
Hydraulic automatic lid opening/closing.
Vacuum material suction: the function of vacuum suction of brine and powder during the tumbling process.
Equipped with Siemens PLC touch screen, allowing intuitive and flexible programming and setting of tumbling parameters.
Adopting Siemens frequency converter for stepless speed regulation.
Configured with a water-loop vacuum pump, a water tank, and a vacuum filter.
Multiple blade types available, ensuring wide product adaptability.
The main body of the machine is made of 304 stainless steel, featuring a robust structural design and fine manufacturing process.
Standard technology: the inner wall of the drum is finely polished, and the outer surface of the machine is treated with wire drawing or sandblasting.
Optional drum with cooling jacket, which can be connected to an external cooling system to achieve temperature-controlled tumbling. (Cooling model)
Optional hydraulic feeder for automatic feeding.
Optional weighing module for real-time weighing.
Optional oil-loop vacuum
MODEL | VOLUME (L) | CAPACITY (KG) | DRUM SPEED (RPM) | VACUUM (MPA) | POWER (KW) | L * W * H1 * H2 (MM) | WEIGHT (KG) |
VTY350APS | 350 | 200 | 2-14 | -0.085 | 4.05 | 1700*1400*1650*1950 | 460 |
